Blower

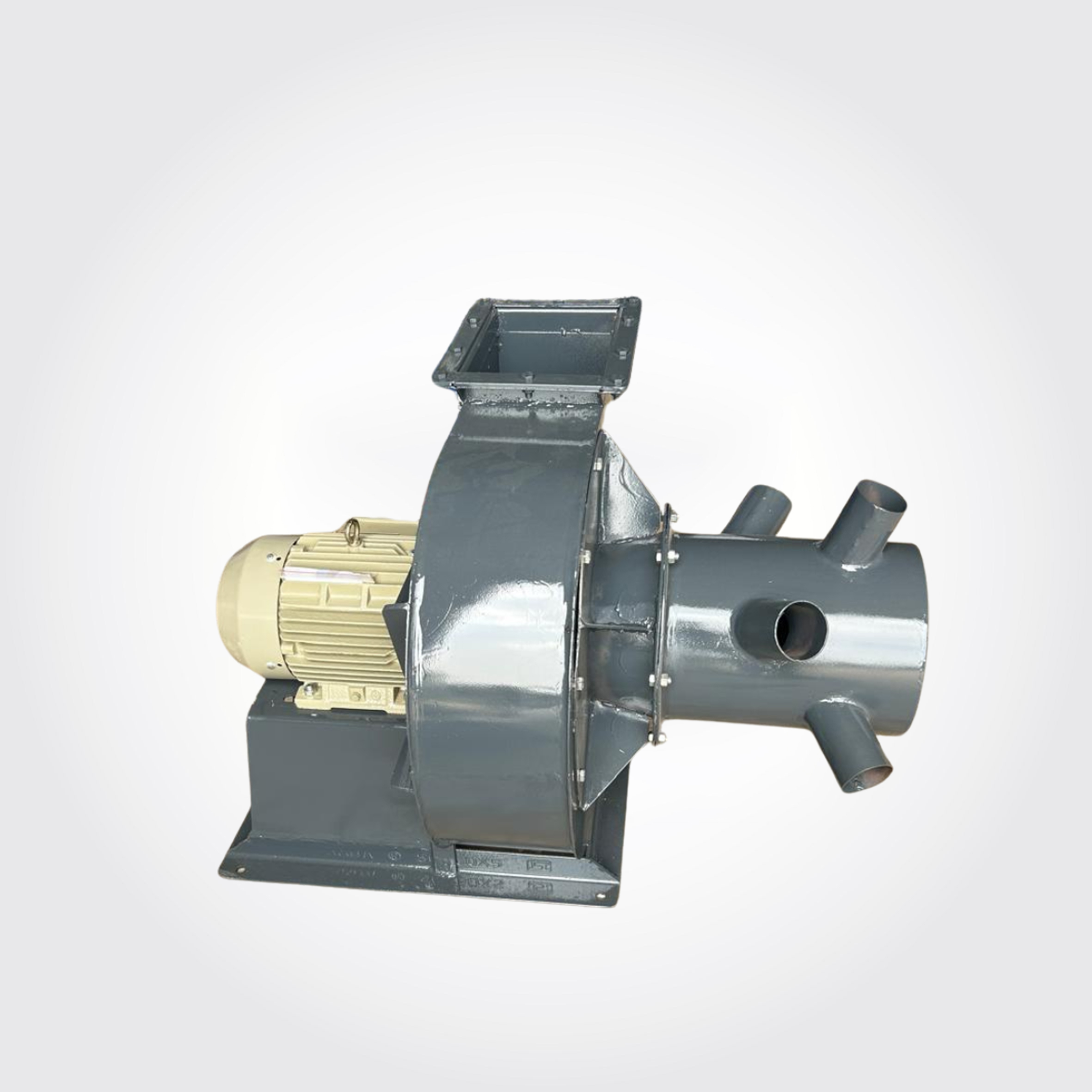

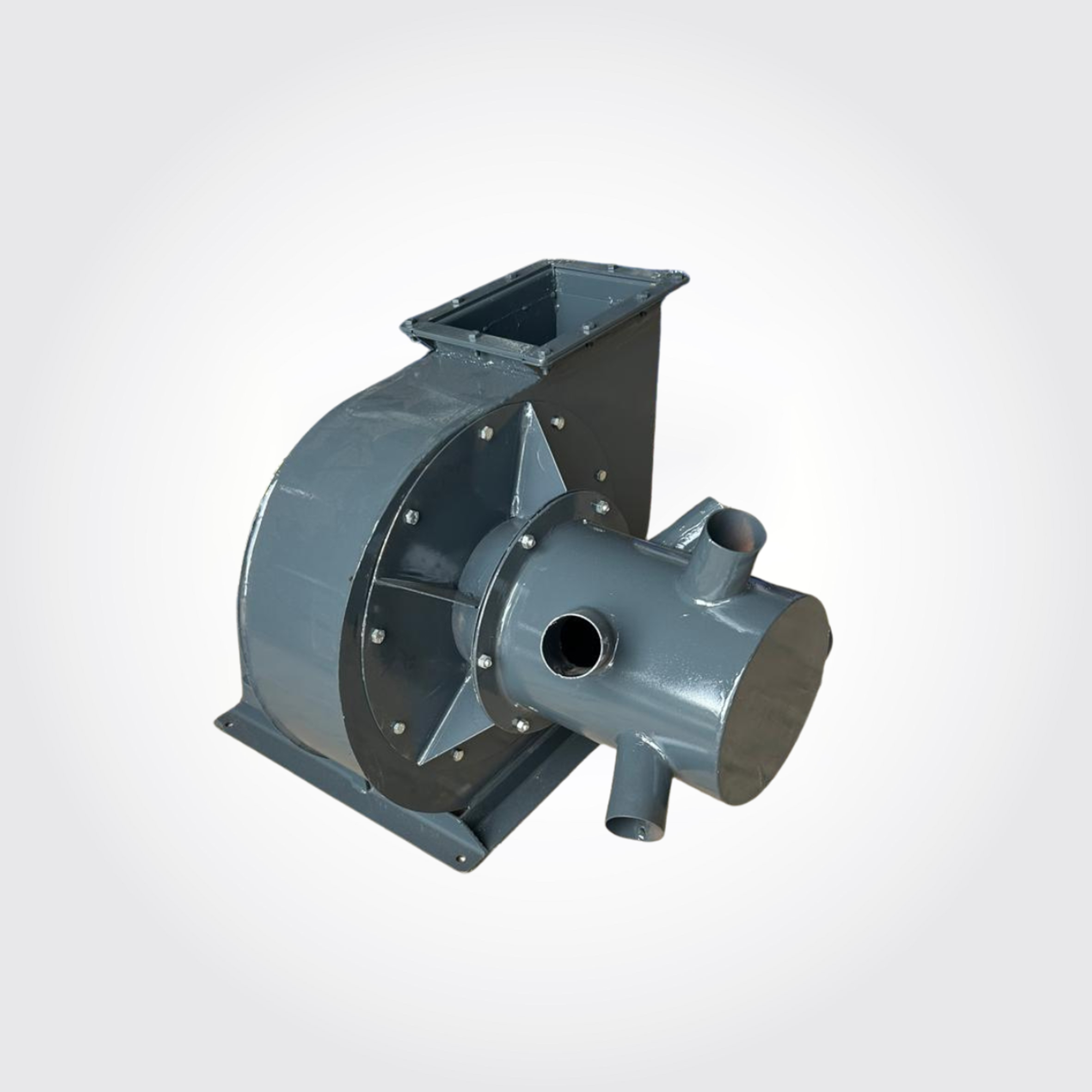

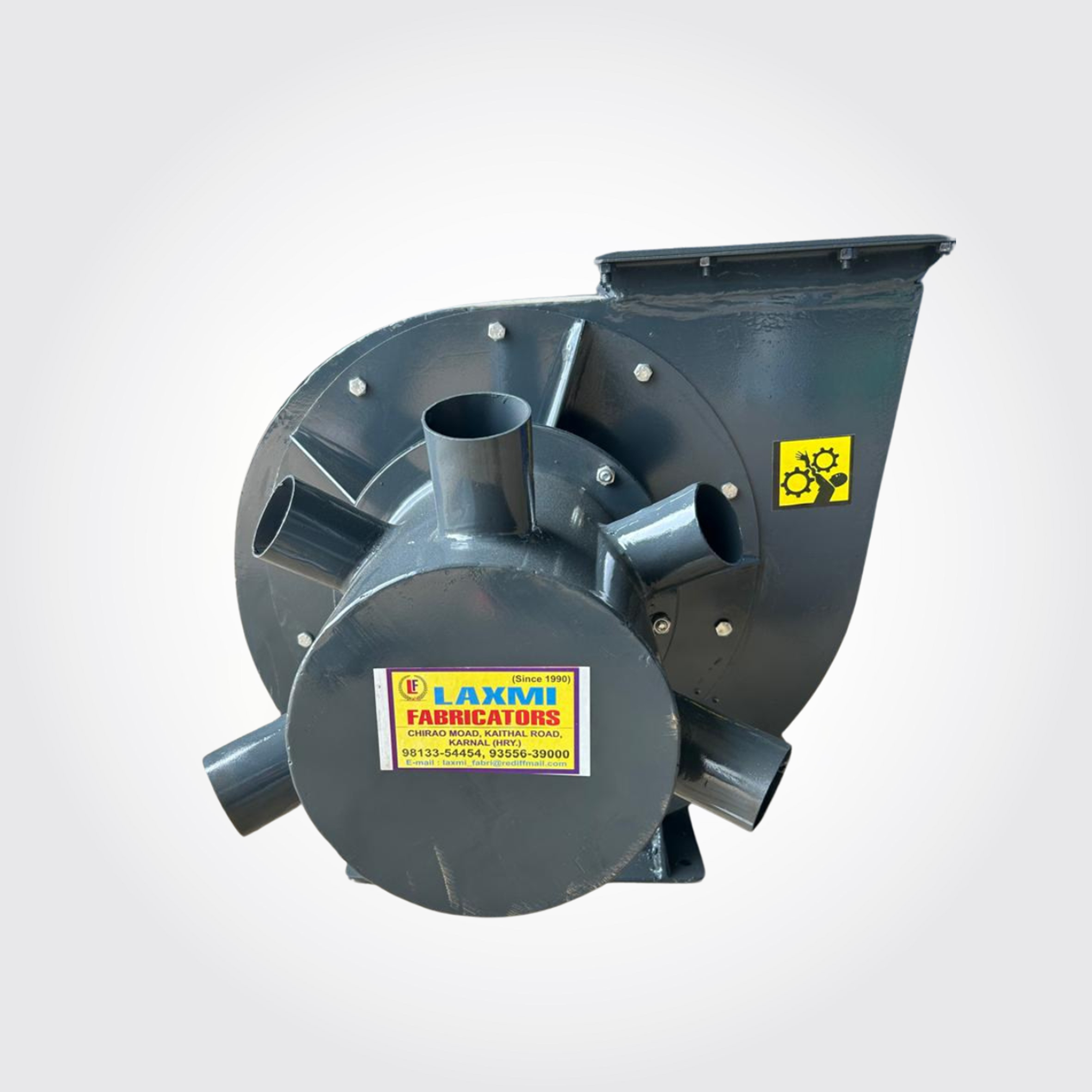

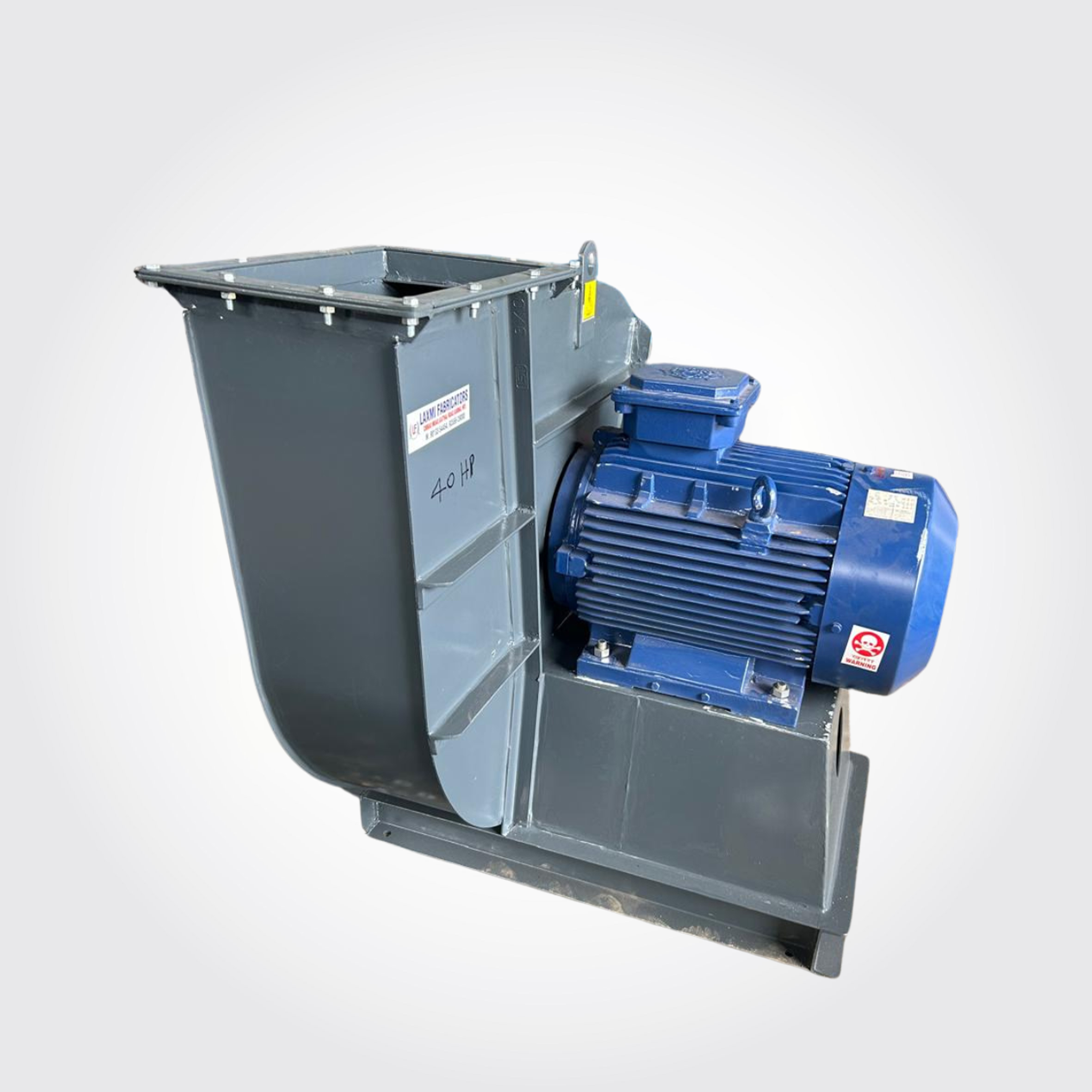

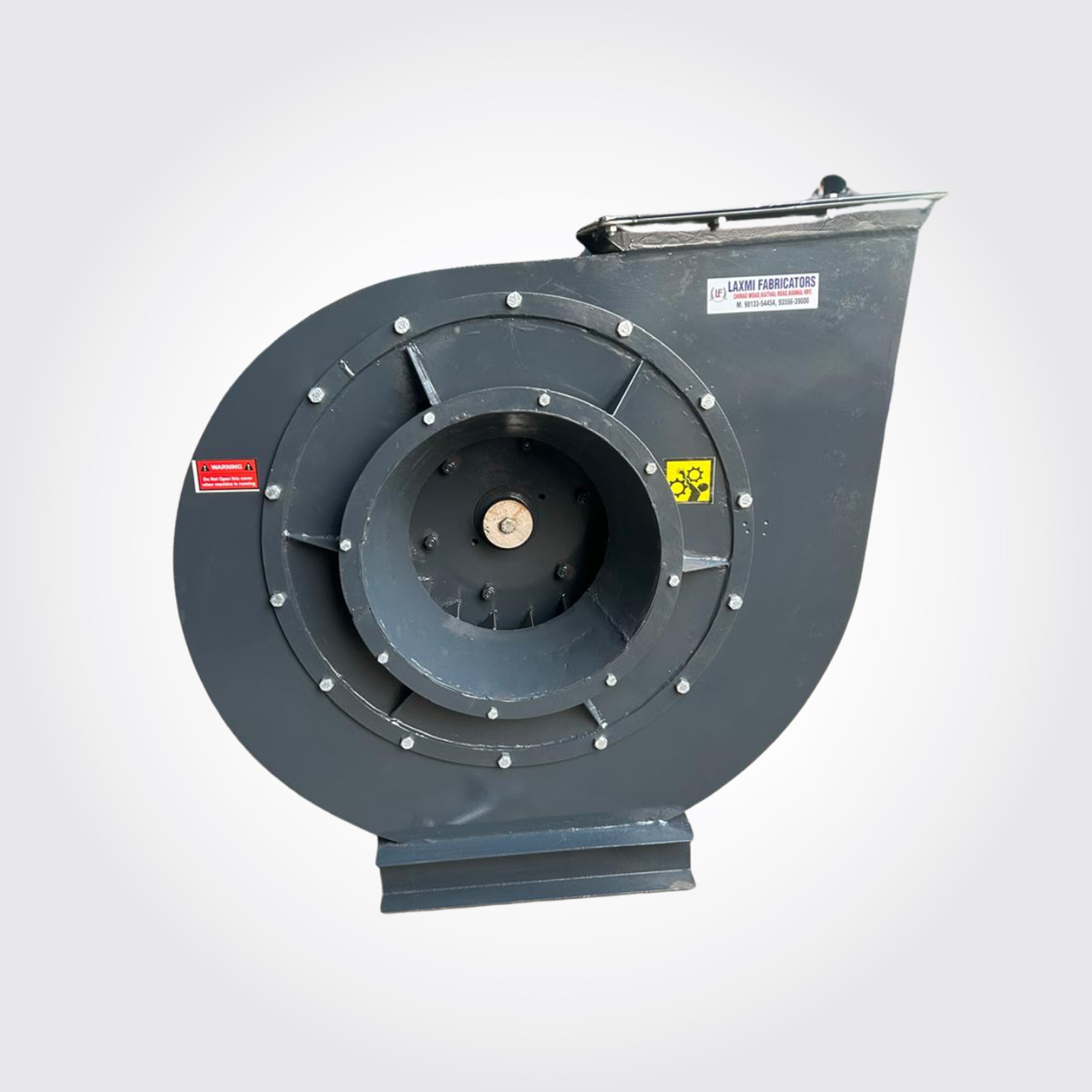

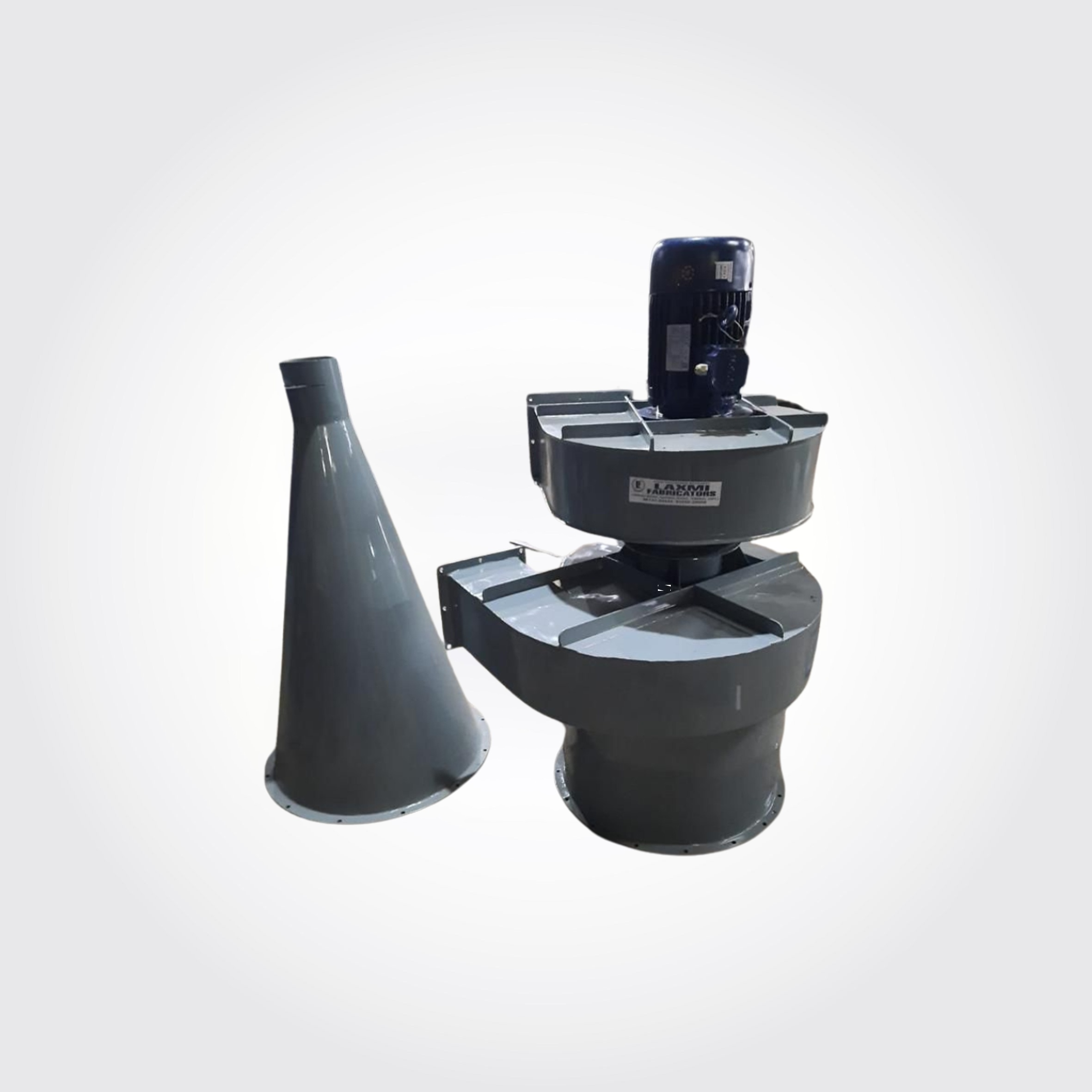

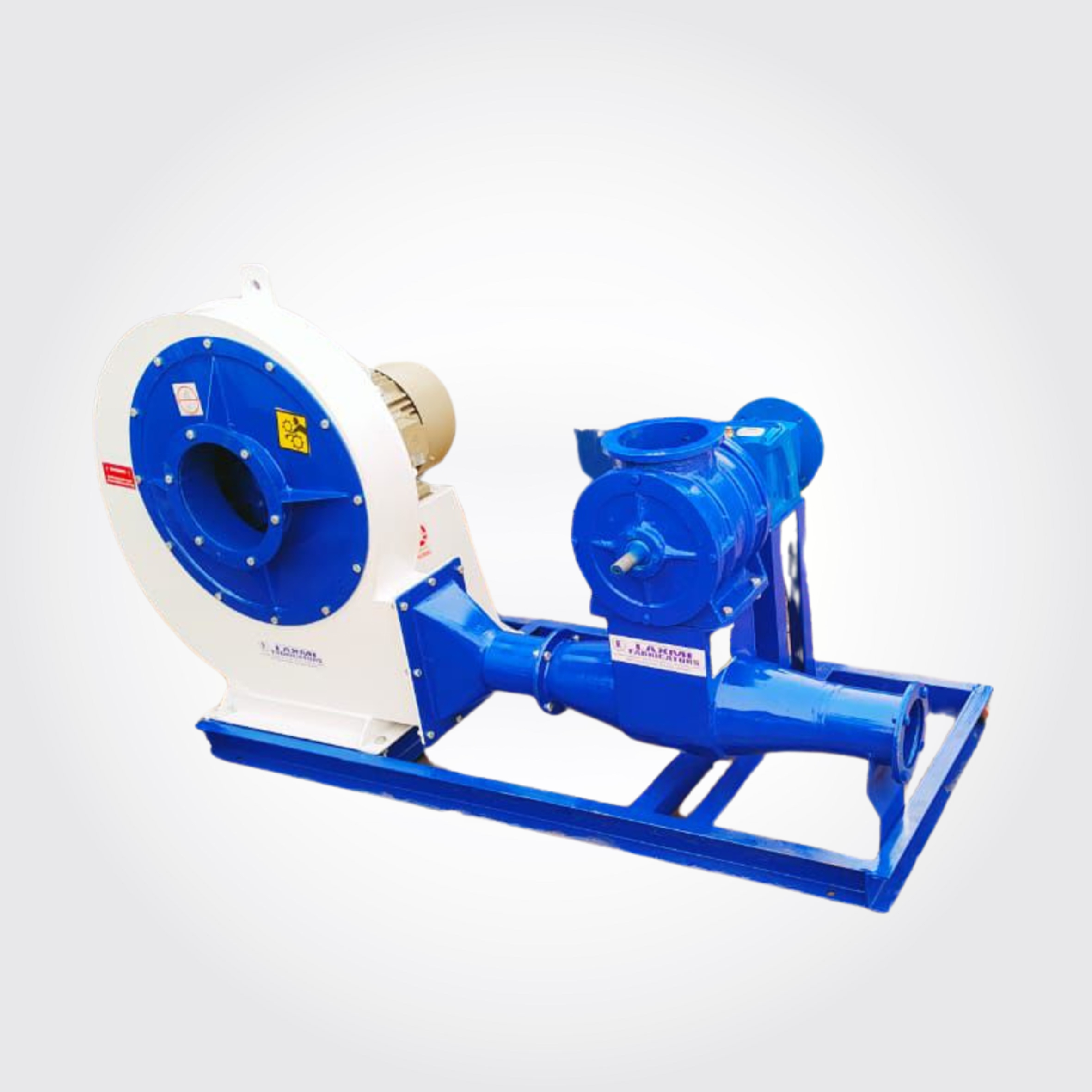

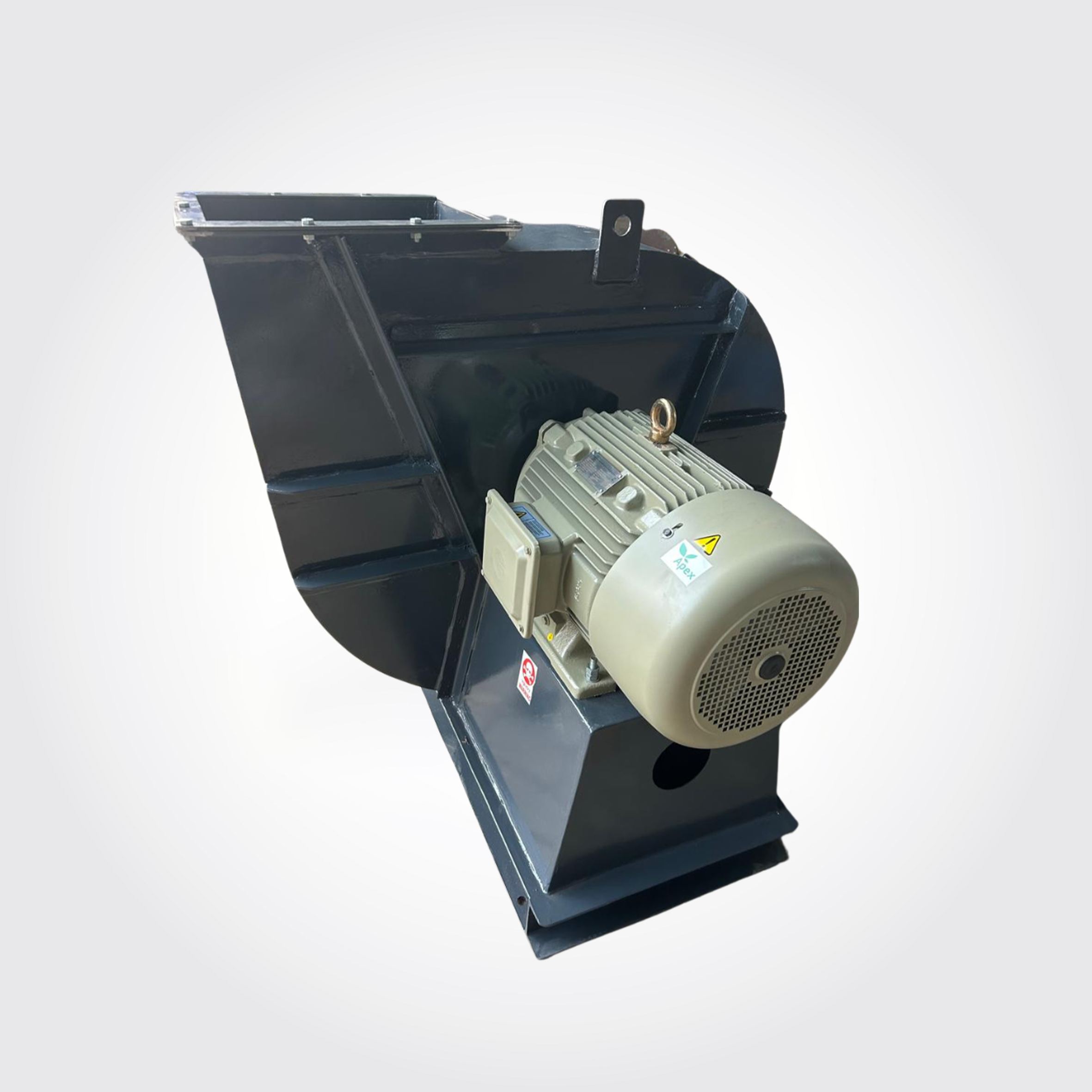

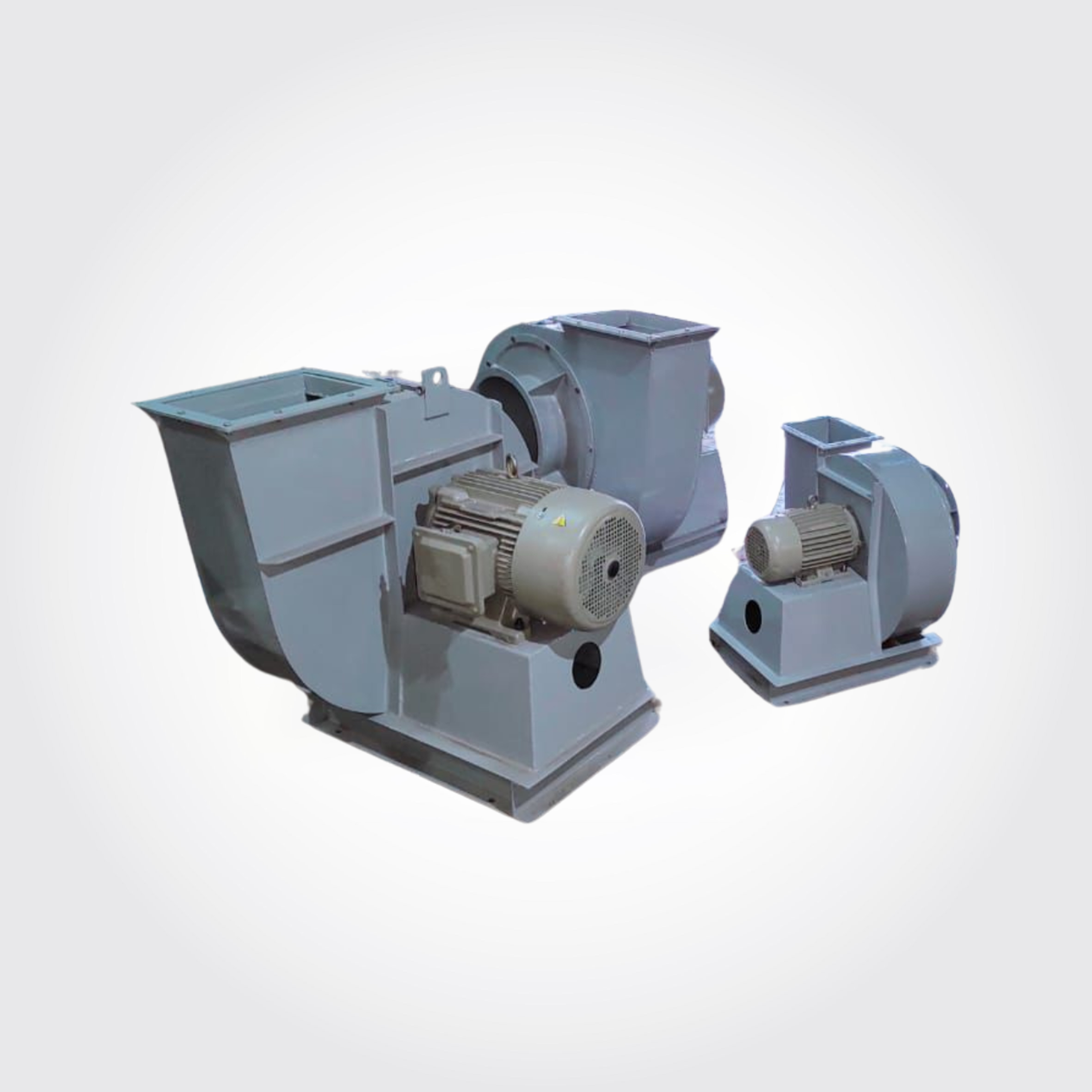

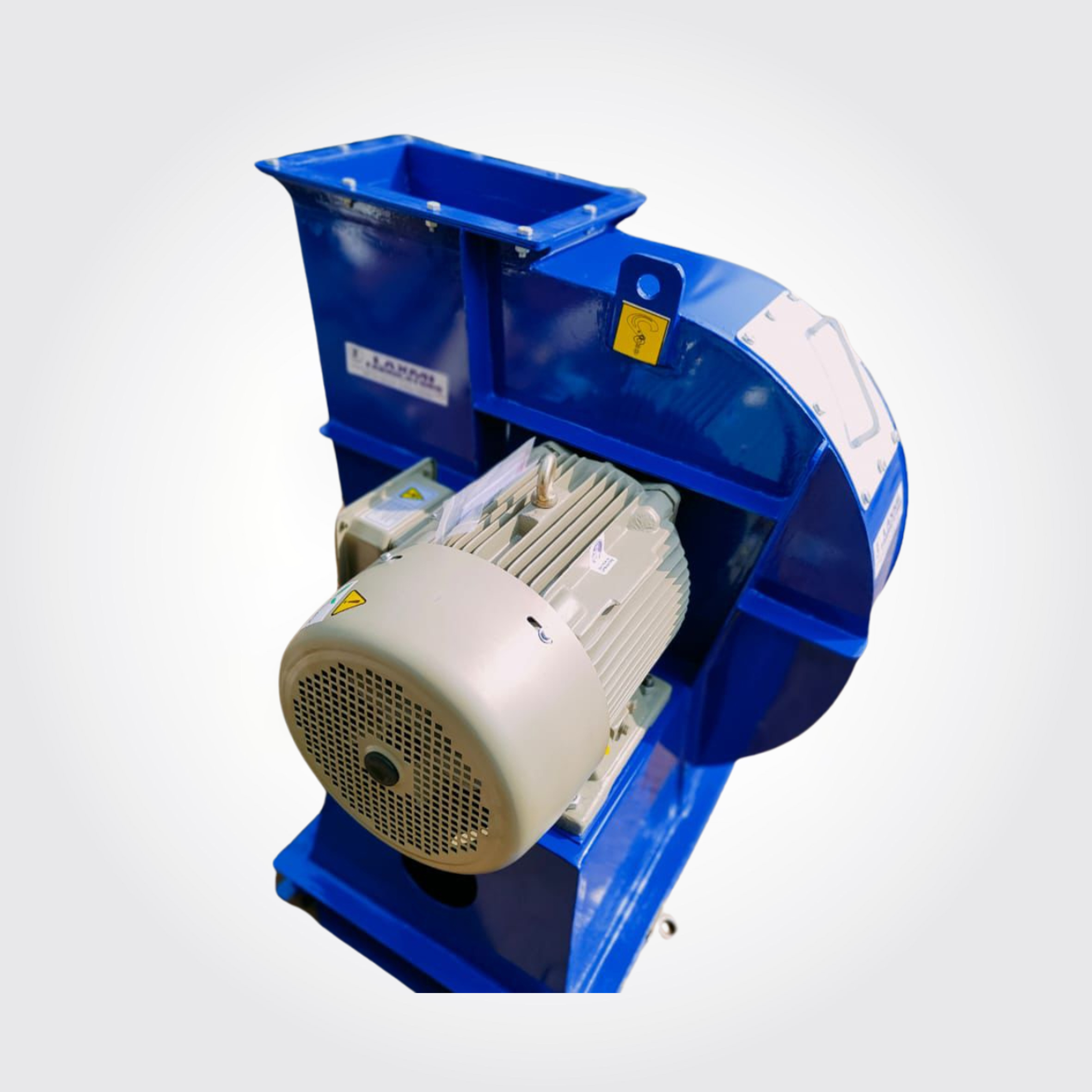

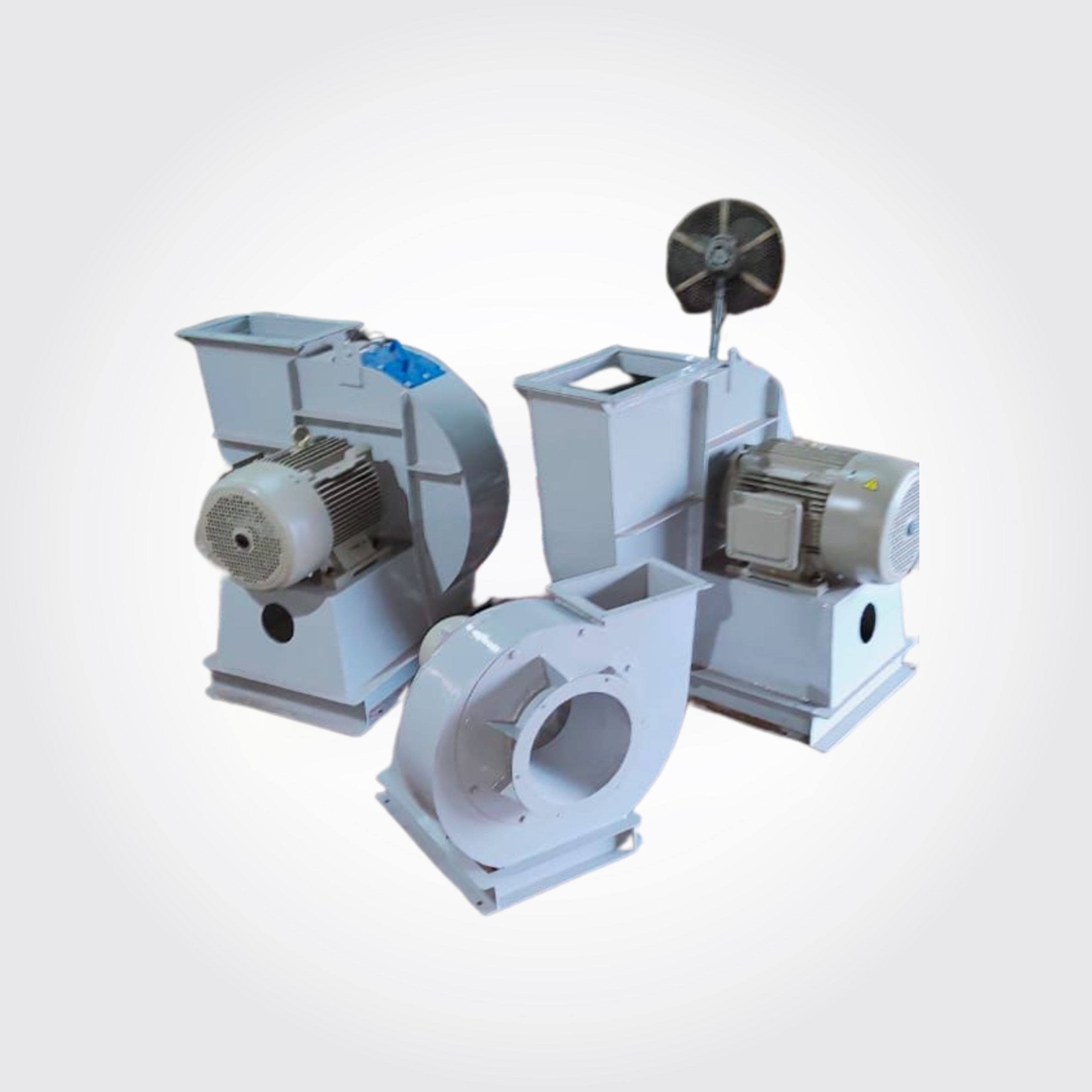

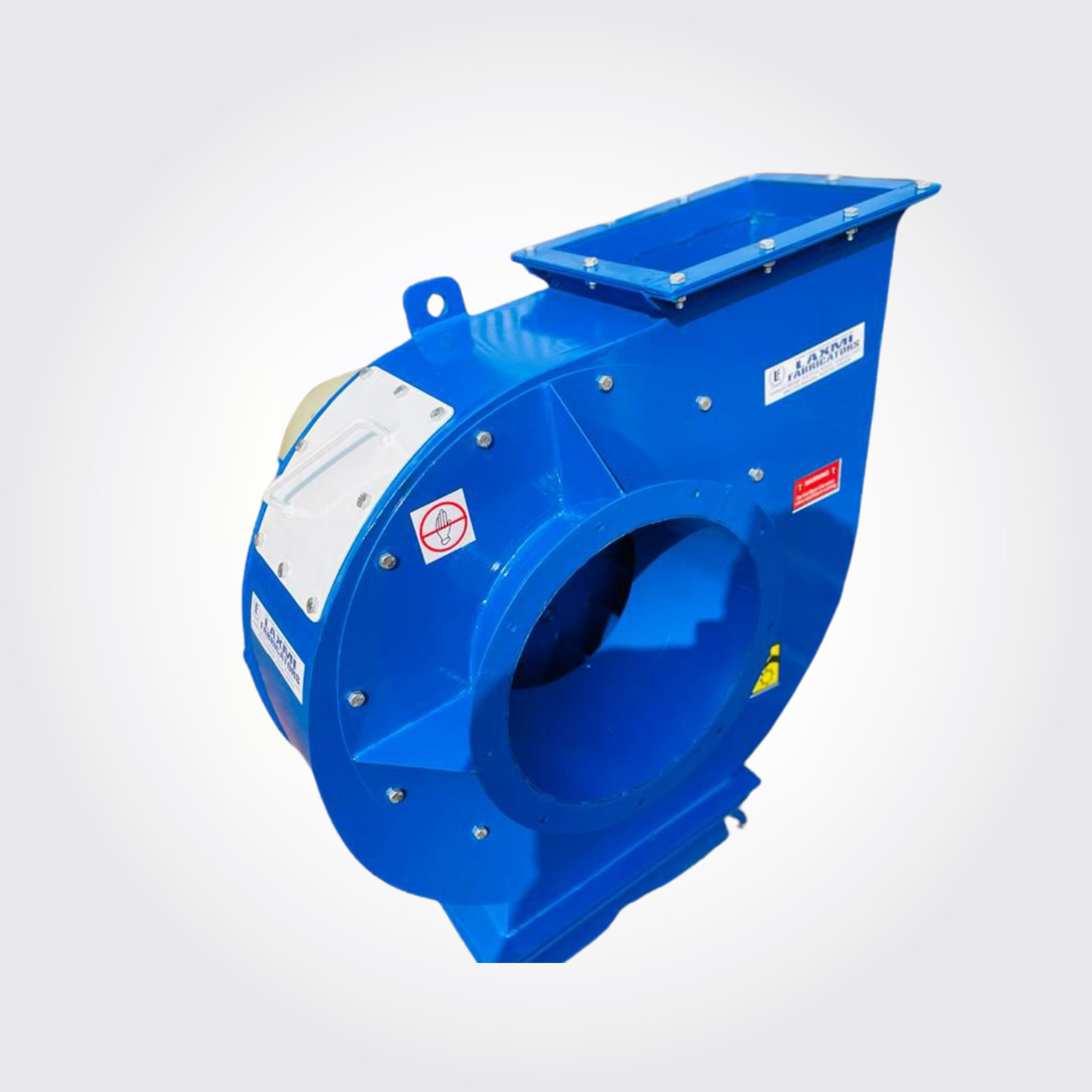

The rice mill Centrifugal Blower is widely used for ventilation, de-dusting, air conveying in industry, agriculture, mining, refrigeration, architecture, chemistry, textile, flour and feed processing plants. It's necessary exhaust system in modern rice mill.

15 HP Rice Mill Blowers For Scrubber has high-quality parts and it is easy to operate. The motor is quiet. This rice mill blower can be used to grind many kinds of grains such as wheat, corn, millet, barley, etc. It will make your life easier. It's necessary exhaust system in modern rice mill. Rice Mill Blower is designed and developed in accordance with national market trend and keeping in mind the precise demands of clients. The offered Rice Mill Blower are available in a variety of sizes, dimensions and other such specifications to choose from and can avail at the industry leading prices.

  • Specification
  • Get A Quote

Specification

Usage/Application Rice Mill
Phase 3 Phase
Voltage 220V
Power Source Electric
Max Airflow: 500/600m3/h

Parameters of Rice Mill Blower

Model RPM (r/min)  Pq      (pa) CMF (m3/h) Power (kw) Inlet Diameter (mm) Outlet Diameter (mm) Height (mm) Center Height(mm)
2.8A 2900 606-994 1131-2356 1.2 280 230*200 B35 B35
3.2A 2900 792-1300 1688-3517 2.2 320 260*230 B35 B35
3.6A 2900 989-1578 2664-5268 3 360 288*252 660 380
4A 2900 1320-2014 4012-7419 5.5 400 335*288 775 472
4.25A 2900 1497-2284 4869-8991 5.5 430 335*365 780 472
4.5A 2900 1673-2554 5712-10562 7.5 450 365*325 780 472
5A 2900 2019-3178 7728-15455 11 500 405*355 930 585
5.25A 2900 2422-3609 9007-18013 15 525 425*375 945 585
5.5A 2900 3720-4040 10285-19070 18.5 550 440*395 965 585
6A 2900 1303-2054 12419-24035 22 600 482*430 1020 610
